Product description:

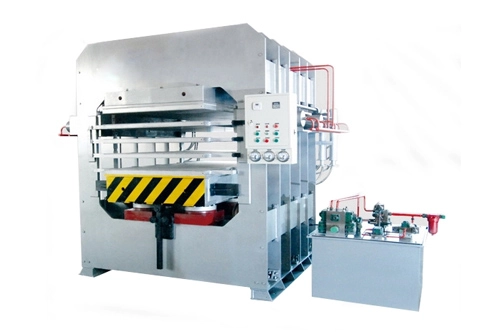

The mechanical equipment is a three-way hot press, divided into single layer and multi-layer, specially used for pressing bamboo flooring and bamboo cutting boards. The single laminator is filled with a high-position fuel tank, and the closing speed is fast. The electrical system is controlled by PLC programmable controller, which is flexible in operation and reliable in operation.
Technical Parameters:
Nominal pressure: 7500KN
Frame size (length * width * height): 2300*2940*3545mm
Hot pressing plate format: 2700*1400/52mm
Rack weight: 10.5T
Number of pressing layers: 4 layers
Frame board thickness: 30mm
Press plate spacing: 140mm
The height of the upper and lower beams of the frame board: 800mm
Side pressure: 1500kn
Width of frame plate column: 450mm
Side pressure stroke: 140mm
Main pressure cylinder: ZSG250*560mm six
Side pressure cylinder: ten HSG125*140mm
Maximum working pressure: 25mp
Equipment power: 17KW
