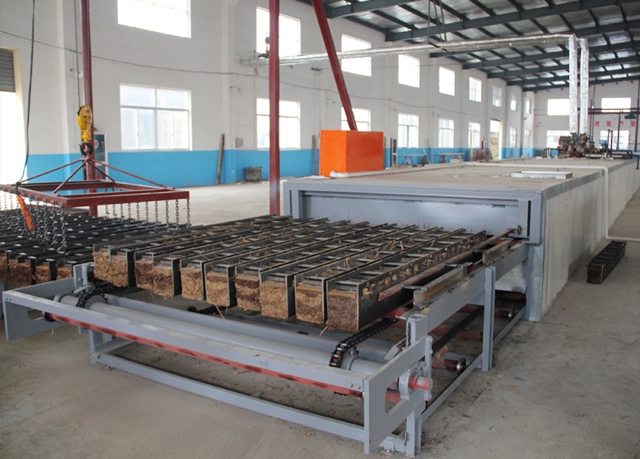

Continuous conveying curing tunnel YK/G2000 type

1

Dimensions

Length×width×height：48M×2.5M×1.5M。

The solidification part includes a heating zone, a constant temperature zone and a cooling zone.

2

Transfer method

24A curved plate roller chain with two lanes, worm gear reducer with gear reducer to provide transmission power.

3

Feeding rack specifications

The clear width is 2M, and the length of the square material is 0.6M-2.5M

4

Equipment materials

The angle steel channel steel is used for the frame, the high temperature resistant 300 degrees high temperature sound insulation cotton is used for heat insulation, and the inner liner is galvanized sheet and the outer color sheet is smooth and beautiful. (Heat insulation on six sides)

5

Way of taking temperature

Thermal oil is preferred as the heat source.。

6

Heat exchanger form

Steel-aluminum composite coil radiator.

8

Temperature control method

Centralized display and centralized operation automatic control of the temperature measurement points in the zone.

9

Operator

The operator of the hydraulic press is attached with feeding, and the operator of the stripping machine is attached with the feeding and viewing the value of each table.

10

work process

Loading-conveying-heating-constant temperature-cooling-unloading.

11

Power

The total power is 3KW. (Power consumption parts: feeding motor, solenoid valve)

12

Production

Matching with the hydraulic machine, about 200 pieces of solidified materials are counted as 8 hours per shift.
