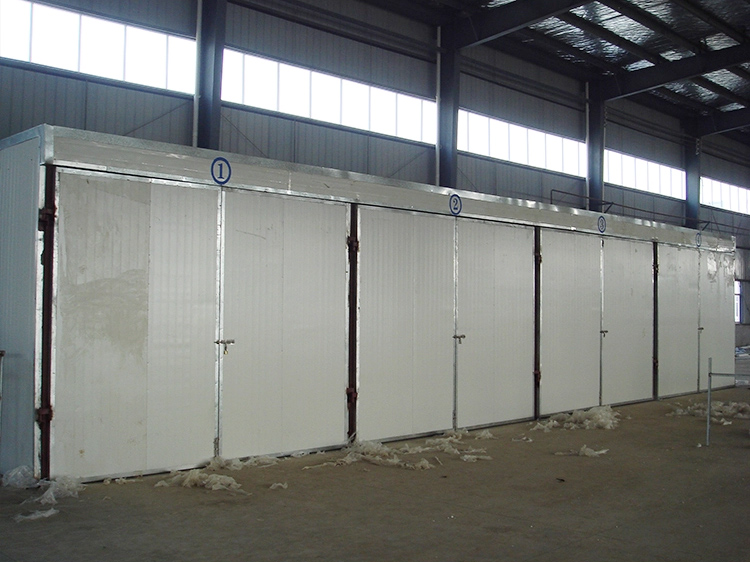

balance room

1

Dimensions

Length×width×height：7M×4.5M×3.5M(single)　Among them, the balance area is 6MX4.2MX3M, and the rest are ventilation channels

（Sliding door design）According to the customer's production volume, it can be arranged side by side.

2

Equipment materials

The square tube angle steel is used as the frame, using high-temperature resistant sandwich panels, lined with galvanized sheets, and the outer color panels are smooth and beautiful.

(5 sides thermal insulation)

3

Way of taking temperature

Usually steam is used to get heat through a heat exchanger, and heat transfer oil can also be used as a heat source.

4

Heat exchanger form

Steel-aluminum composite fin radiator

5

Temperature control method

The temperature of the air duct is automatically controlled at the temperature point.

6

work process

Pok board stacking-heating-constant temperature-cooling-discharging.

7

Power

Total power3KW/set. (Power consumption parts: high temperature fan, solenoid valve)

8

Production

1500 square meters per room per batch.

9

Features

This equipment is designed for disassembly and assembly, which is convenient for relocation due to plant relocation and workshop layout changes. The sliding door design saves the opening space occupied by the original double doors.
